Hands-on

亲身实践

在Colab中公开提问

Now that we studied the theory behind PPO, the best way to understand how it works is to implement it from scratch.

既然我们研究了PPO背后的理论，理解它是如何工作的最好方法就是从头开始实施。

Implementing an architecture from scratch is the best way to understand it, and it’s a good habit. We have already done it for a value-based method with Q-Learning and a Policy-based method with Reinforce.

从头开始实现体系结构是理解它的最好方式，而且这是一个好习惯。我们已经对基于价值的方法和基于策略的方法进行了改进，其中Q-Learning采用的是Q-Learning，而策略方法采用的是Entra。

So, to be able to code it, we’re going to use two resources:

因此，为了能够对其进行编码，我们将使用两个资源：

• A tutorial made by Costa Huang. Costa is behind CleanRL, a Deep Reinforcement Learning library that provides high-quality single-file implementation with research-friendly features.
• In addition to the tutorial, to go deeper, you can read the 13 core implementation details: https://iclr-blog-track.github.io/2022/03/25/ppo-implementation-details/

Then, to test its robustness, we’re going to train it in:

黄科斯塔制作的教程。Costa是深度强化学习库CleanRL的幕后推手，该库提供具有研究友好特性的高质量单文件实施。除了本教程之外，您还可以阅读13个核心实施细节：https://iclr-blog-track.github.io/2022/03/25/ppo-implementation-details/Then，要测试其健壮性，我们将在以下方面对其进行培训：

• LunarLander-v2

<source src=”assets/63_deep_rl_intro/lunarlander.mp4” type=”video/mp4”>
</video>

LUNARLADER-v2<SOURCE src=“Assets/63_Deep_rl_Intro/Lunarlander.mp4”type=“Video/mp4”>

And finally, we will be push the trained model to the Hub to evaluate and visualize your agent playing.

最后，我们将把训练好的模型推送到中心，以评估和可视化您的代理游戏。

LunarLander-v2 is the first environment you used when you started this course. At that time, you didn’t know how it worked, and now, you can code it from scratch and train it. How incredible is that 🤩.

LunarLander-v2是您开始学习本课程时使用的第一个环境。当时，你不知道它是怎么工作的，现在，你可以从头开始编写它的代码，然后对它进行训练。这是多么不可思议的🤩。

via GIPHY

通过GIPHY

Let’s get started! 🚀

让我们开始吧！🚀

The colab notebook:

CoLab笔记本电脑：

在Colab开业

Unit 8: Proximal Policy Gradient (PPO) with PyTorch 🤖

单元8：使用PYTORCH🤖的近端策略梯度(PPO)

In this notebook, you’ll learn to code your PPO agent from scratch with PyTorch using CleanRL implementation as model.

在本笔记本中，您将学习如何以CleanRL实现为模型，用PyTorch从头开始编写PPO代理代码。

To test its robustness, we’re going to train it in:

为了测试其健壮性，我们将在以下方面对其进行训练：

• LunarLander-v2 🚀

We’re constantly trying to improve our tutorials, so if you find some issues in this notebook, please open an issue on the GitHub Repo.

LUNARLADER-v2🚀我们一直在努力改进我们的教程，所以如果你在这个笔记本上发现了一些问题，请在GitHub Repo上打开一个问题。

Objectives of this notebook 🏆

此笔记本电脑🏆的目标

At the end of the notebook, you will:

在笔记本结尾处，您将：

• Be able to code your PPO agent from scratch using PyTorch.
• Be able to push your trained agent and the code to the Hub with a nice video replay and an evaluation score 🔥.

Prerequisites 🏗️

能够使用PyTorch从头开始编写您的PPO代理。能够通过良好的视频回放和评估分数🔥将您训练有素的代理和代码推送到中心。Prerequisites🏗️

Before diving into the notebook, you need to:

在深入研究笔记本之前，您需要：

🔲 📚 Study PPO by reading Unit 8 🤗

🔲📚通过阅读单元8🤗研究PPO

To validate this hands-on for the certification process, you need to push one model, we don’t ask for a minimal result but we advise you to try different hyperparameters settings to get better results.

要验证认证过程的实际操作，您需要推送一个模型，我们不要求最小结果，但我们建议您尝试不同的超参数设置以获得更好的结果。

If you don’t find your model, go to the bottom of the page and click on the refresh button

如果您没有找到您的模型，请转到页面底部并单击刷新按钮

For more information about the certification process, check this section 👉 https://huggingface.co/deep-rl-course/en/unit0/introduction#certification-process

有关认证过程的更多信息，请查看https://huggingface.co/deep-rl-course/en/unit0/introduction#certification-process👉这一节

Set the GPU 💪

设置图形处理器💪

• To accelerate the agent’s training, we’ll use a GPU. To do that, go to Runtime > Change Runtime type

为了加快工程师的培训，我们将使用GPU。为此，请转到运行时>更改运行时类型GPU步骤1

• Hardware Accelerator > GPU

`硬件加速器>GPU`GPU步骤2

Create a virtual display 🔽

创建虚拟显示🔽

During the notebook, we’ll need to generate a replay video. To do so, with colab, we need to have a virtual screen to be able to render the environment (and thus record the frames).

在笔记本期间，我们需要生成一个回放视频。要做到这一点，使用CoLab，我们需要一个虚拟屏幕来渲染环境(并因此记录帧)。

Hence the following cell will install the librairies and create and run a virtual screen 🖥

因此，下面的单元将安装库并创建和运行虚拟屏幕🖥

apt install python-opengl
apt install ffmpeg
apt install xvfb
pip install pyglet==1.5
pip install pyvirtualdisplay

# Virtual display
from pyvirtualdisplay import Display

virtual_display = Display(visible=0, size=(1400, 900))
virtual_display.start()

Install dependencies 🔽

安装依赖项🔽

For this exercise, we use gym==0.21

在本练习中，我们使用gym==0.21

pip install gym==0.21
pip install imageio-ffmpeg
pip install huggingface_hub
pip install box2d

Let’s code PPO from scratch with Costa Huang tutorial

让我们用Costa Huang教程从头开始编写PPO

• For the core implementation of PPO we’re going to use the excellent Costa Huang tutorial.
• In addition to the tutorial, to go deeper you can read the 37 core implementation details: https://iclr-blog-track.github.io/2022/03/25/ppo-implementation-details/
  👉 The video tutorial: https://youtu.be/MEt6rrxH8W4

from IPython.display import HTML

HTML(
    '<iframe width="560" height="315" src="https://www.youtube.com/embed/MEt6rrxH8W4" title="YouTube video player" frameborder="0" allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture" allowfullscreen></iframe>'
)

Add the Hugging Face Integration 🤗

对于PPO的核心实施，我们将使用优秀的Costa Huang教程。除了该教程外，要深入了解该教程，您可以阅读37个核心实施细节：https://iclr-blog-track.github.io/2022/03/25/ppo-implementation-details/和视频教程：https://youtu.be/MEt6rrxH8W4Add👉Huging Face🤗

• In order to push our model to the Hub, we need to define a function package_to_hub

• Add dependencies we need to push our model to the Hub

from huggingface_hub import HfApi, upload_folder
from huggingface_hub.repocard import metadata_eval_result, metadata_save

from pathlib import Path
import datetime
import tempfile
import json
import shutil
import imageio

from wasabi import Printer

msg = Printer()

• Add new argument in parse_args() function to define the repo-id where we want to push the model.

# Adding HuggingFace argument
parser.add_argument(
    "--repo-id",
    type=str,
    default="ThomasSimonini/ppo-CartPole-v1",
    help="id of the model repository from the Hugging Face Hub {username/repo_name}",
)

• Next, we add the methods needed to push the model to the Hub

  为了将我们的模型推送到Hub，我们需要定义一个函数Package_to_hub添加依赖项我们需要将我们的模型推送到HubAdd new参数在parse_args()函数中定义我们想要推送模型的repo-id。接下来，我们添加将模型推送到Hub所需的方法

• These methods will:

  这些方法将：

  • _evalutate_agent(): evaluate the agent.
  • _generate_model_card(): generate the model card of your agent.
  • _record_video(): record a video of your agent.

def package_to_hub(
 repo_id,
 model,
 hyperparameters,
 eval_env,
 video_fps=30,
 commit_message="Push agent to the Hub",
 token=None,
 logs=None,
):
    """
 Evaluate, Generate a video and Upload a model to Hugging Face Hub.
 This method does the complete pipeline:
 - It evaluates the model
 - It generates the model card
 - It generates a replay video of the agent
 - It pushes everything to the hub
 :param repo_id: id of the model repository from the Hugging Face Hub
 :param model: trained model
 :param eval_env: environment used to evaluate the agent
 :param fps: number of fps for rendering the video
 :param commit_message: commit message
 :param logs: directory on local machine of tensorboard logs you'd like to upload
 """
    msg.info(
        "This function will save, evaluate, generate a video of your agent, "
        "create a model card and push everything to the hub. "
        "It might take up to 1min. \n "
        "This is a work in progress: if you encounter a bug, please open an issue."
    )
    # Step 1: Clone or create the repo
    repo_url = HfApi().create_repo(
        repo_id=repo_id,
        token=token,
        private=False,
        exist_ok=True,
    )

    with tempfile.TemporaryDirectory() as tmpdirname:
        tmpdirname = Path(tmpdirname)

        # Step 2: Save the model
        torch.save(model.state_dict(), tmpdirname / "model.pt")

        # Step 3: Evaluate the model and build JSON
        mean_reward, std_reward = _evaluate_agent(eval_env, 10, model)

        # First get datetime
        eval_datetime = datetime.datetime.now()
        eval_form_datetime = eval_datetime.isoformat()

        evaluate_data = {
            "env_id": hyperparameters.env_id,
            "mean_reward": mean_reward,
            "std_reward": std_reward,
            "n_evaluation_episodes": 10,
            "eval_datetime": eval_form_datetime,
        }

        # Write a JSON file
        with open(tmpdirname / "results.json", "w") as outfile:
            json.dump(evaluate_data, outfile)

        # Step 4: Generate a video
        video_path = tmpdirname / "replay.mp4"
        record_video(eval_env, model, video_path, video_fps)

        # Step 5: Generate the model card
        generated_model_card, metadata = _generate_model_card(
            "PPO", hyperparameters.env_id, mean_reward, std_reward, hyperparameters
        )
        _save_model_card(tmpdirname, generated_model_card, metadata)

        # Step 6: Add logs if needed
        if logs:
            _add_logdir(tmpdirname, Path(logs))

        msg.info(f"Pushing repo {repo_id} to the Hugging Face Hub")

        repo_url = upload_folder(
            repo_id=repo_id,
            folder_path=tmpdirname,
            path_in_repo="",
            commit_message=commit_message,
            token=token,
        )

        msg.info(f"Your model is pushed to the Hub. You can view your model here: {repo_url}")
    return repo_url


def _evaluate_agent(env, n_eval_episodes, policy):
    """
 Evaluate the agent for ``n_eval_episodes`` episodes and returns average reward and std of reward.
 :param env: The evaluation environment
 :param n_eval_episodes: Number of episode to evaluate the agent
 :param policy: The agent
 """
    episode_rewards = []
    for episode in range(n_eval_episodes):
        state = env.reset()
        step = 0
        done = False
        total_rewards_ep = 0

        while done is False:
            state = torch.Tensor(state).to(device)
            action, _, _, _ = policy.get_action_and_value(state)
            new_state, reward, done, info = env.step(action.cpu().numpy())
            total_rewards_ep += reward
            if done:
                break
            state = new_state
        episode_rewards.append(total_rewards_ep)
    mean_reward = np.mean(episode_rewards)
    std_reward = np.std(episode_rewards)

    return mean_reward, std_reward


def record_video(env, policy, out_directory, fps=30):
    images = []
    done = False
    state = env.reset()
    img = env.render(mode="rgb_array")
    images.append(img)
    while not done:
        state = torch.Tensor(state).to(device)
        # Take the action (index) that have the maximum expected future reward given that state
        action, _, _, _ = policy.get_action_and_value(state)
        state, reward, done, info = env.step(
            action.cpu().numpy()
        )  # We directly put next_state = state for recording logic
        img = env.render(mode="rgb_array")
        images.append(img)
    imageio.mimsave(out_directory, [np.array(img) for i, img in enumerate(images)], fps=fps)


def _generate_model_card(model_name, env_id, mean_reward, std_reward, hyperparameters):
    """
 Generate the model card for the Hub
 :param model_name: name of the model
 :env_id: name of the environment
 :mean_reward: mean reward of the agent
 :std_reward: standard deviation of the mean reward of the agent
 :hyperparameters: training arguments
 """
    # Step 1: Select the tags
    metadata = generate_metadata(model_name, env_id, mean_reward, std_reward)

    # Transform the hyperparams namespace to string
    converted_dict = vars(hyperparameters)
    converted_str = str(converted_dict)
    converted_str = converted_str.split(", ")
    converted_str = "\n".join(converted_str)

    # Step 2: Generate the model card
    model_card = f"""
 # PPO Agent Playing {env_id}

 This is a trained model of a PPO agent playing {env_id}.

 # Hyperparameters
 """
    return model_card, metadata


def generate_metadata(model_name, env_id, mean_reward, std_reward):
    """
 Define the tags for the model card
 :param model_name: name of the model
 :param env_id: name of the environment
 :mean_reward: mean reward of the agent
 :std_reward: standard deviation of the mean reward of the agent
 """
    metadata = {}
    metadata["tags"] = [
        env_id,
        "ppo",
        "deep-reinforcement-learning",
        "reinforcement-learning",
        "custom-implementation",
        "deep-rl-course",
    ]

    # Add metrics
    eval = metadata_eval_result(
        model_pretty_name=model_name,
        task_pretty_name="reinforcement-learning",
        task_id="reinforcement-learning",
        metrics_pretty_name="mean_reward",
        metrics_id="mean_reward",
        metrics_value=f"{mean_reward:.2f} +/- {std_reward:.2f}",
        dataset_pretty_name=env_id,
        dataset_id=env_id,
    )

    # Merges both dictionaries
    metadata = {**metadata, **eval}

    return metadata


def _save_model_card(local_path, generated_model_card, metadata):
    """Saves a model card for the repository.
 :param local_path: repository directory
 :param generated_model_card: model card generated by _generate_model_card()
 :param metadata: metadata
 """
    readme_path = local_path / "README.md"
    readme = ""
    if readme_path.exists():
        with readme_path.open("r", encoding="utf8") as f:
            readme = f.read()
    else:
        readme = generated_model_card

    with readme_path.open("w", encoding="utf-8") as f:
        f.write(readme)

    # Save our metrics to Readme metadata
    metadata_save(readme_path, metadata)


def _add_logdir(local_path: Path, logdir: Path):
    """Adds a logdir to the repository.
 :param local_path: repository directory
 :param logdir: logdir directory
 """
    if logdir.exists() and logdir.is_dir():
        # Add the logdir to the repository under new dir called logs
        repo_logdir = local_path / "logs"

        # Delete current logs if they exist
        if repo_logdir.exists():
            shutil.rmtree(repo_logdir)

        # Copy logdir into repo logdir
        shutil.copytree(logdir, repo_logdir)

• Finally, we call this function at the end of the PPO training

# Create the evaluation environment
eval_env = gym.make(args.env_id)

package_to_hub(
    repo_id=args.repo_id,
    model=agent,  # The model we want to save
    hyperparameters=args,
    eval_env=gym.make(args.env_id),
    logs=f"runs/{run_name}",
)

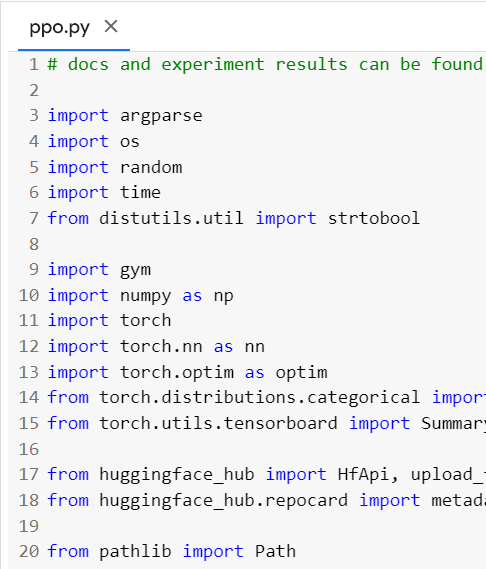

• Here’s what look the ppo.py final file

# docs and experiment results can be found at https://docs.cleanrl.dev/rl-algorithms/ppo/#ppopy

import argparse
import os
import random
import time
from distutils.util import strtobool

import gym
import numpy as np
import torch
import torch.nn as nn
import torch.optim as optim
from torch.distributions.categorical import Categorical
from torch.utils.tensorboard import SummaryWriter

from huggingface_hub import HfApi, upload_folder
from huggingface_hub.repocard import metadata_eval_result, metadata_save

from pathlib import Path
import datetime
import tempfile
import json
import shutil
import imageio

from wasabi import Printer

msg = Printer()


def parse_args():
    # fmt: off
    parser = argparse.ArgumentParser()
    parser.add_argument("--exp-name", type=str, default=os.path.basename(__file__).rstrip(".py"),
        help="the name of this experiment")
    parser.add_argument("--seed", type=int, default=1,
        help="seed of the experiment")
    parser.add_argument("--torch-deterministic", type=lambda x: bool(strtobool(x)), default=True, nargs="?", const=True,
        help="if toggled, `torch.backends.cudnn.deterministic=False`")
    parser.add_argument("--cuda", type=lambda x: bool(strtobool(x)), default=True, nargs="?", const=True,
        help="if toggled, cuda will be enabled by default")
    parser.add_argument("--track", type=lambda x: bool(strtobool(x)), default=False, nargs="?", const=True,
        help="if toggled, this experiment will be tracked with Weights and Biases")
    parser.add_argument("--wandb-project-name", type=str, default="cleanRL",
        help="the wandb's project name")
    parser.add_argument("--wandb-entity", type=str, default=None,
        help="the entity (team) of wandb's project")
    parser.add_argument("--capture-video", type=lambda x: bool(strtobool(x)), default=False, nargs="?", const=True,
        help="weather to capture videos of the agent performances (check out `videos` folder)")

    # Algorithm specific arguments
    parser.add_argument("--env-id", type=str, default="CartPole-v1",
        help="the id of the environment")
    parser.add_argument("--total-timesteps", type=int, default=50000,
        help="total timesteps of the experiments")
    parser.add_argument("--learning-rate", type=float, default=2.5e-4,
        help="the learning rate of the optimizer")
    parser.add_argument("--num-envs", type=int, default=4,
        help="the number of parallel game environments")
    parser.add_argument("--num-steps", type=int, default=128,
        help="the number of steps to run in each environment per policy rollout")
    parser.add_argument("--anneal-lr", type=lambda x: bool(strtobool(x)), default=True, nargs="?", const=True,
        help="Toggle learning rate annealing for policy and value networks")
    parser.add_argument("--gae", type=lambda x: bool(strtobool(x)), default=True, nargs="?", const=True,
        help="Use GAE for advantage computation")
    parser.add_argument("--gamma", type=float, default=0.99,
        help="the discount factor gamma")
    parser.add_argument("--gae-lambda", type=float, default=0.95,
        help="the lambda for the general advantage estimation")
    parser.add_argument("--num-minibatches", type=int, default=4,
        help="the number of mini-batches")
    parser.add_argument("--update-epochs", type=int, default=4,
        help="the K epochs to update the policy")
    parser.add_argument("--norm-adv", type=lambda x: bool(strtobool(x)), default=True, nargs="?", const=True,
        help="Toggles advantages normalization")
    parser.add_argument("--clip-coef", type=float, default=0.2,
        help="the surrogate clipping coefficient")
    parser.add_argument("--clip-vloss", type=lambda x: bool(strtobool(x)), default=True, nargs="?", const=True,
        help="Toggles whether or not to use a clipped loss for the value function, as per the paper.")
    parser.add_argument("--ent-coef", type=float, default=0.01,
        help="coefficient of the entropy")
    parser.add_argument("--vf-coef", type=float, default=0.5,
        help="coefficient of the value function")
    parser.add_argument("--max-grad-norm", type=float, default=0.5,
        help="the maximum norm for the gradient clipping")
    parser.add_argument("--target-kl", type=float, default=None,
        help="the target KL divergence threshold")

    # Adding HuggingFace argument
    parser.add_argument("--repo-id", type=str, default="ThomasSimonini/ppo-CartPole-v1", help="id of the model repository from the Hugging Face Hub {username/repo_name}")

    args = parser.parse_args()
    args.batch_size = int(args.num_envs * args.num_steps)
    args.minibatch_size = int(args.batch_size // args.num_minibatches)
    # fmt: on
    return args


def package_to_hub(
 repo_id,
 model,
 hyperparameters,
 eval_env,
 video_fps=30,
 commit_message="Push agent to the Hub",
 token=None,
 logs=None,
):
    """
 Evaluate, Generate a video and Upload a model to Hugging Face Hub.
 This method does the complete pipeline:
 - It evaluates the model
 - It generates the model card
 - It generates a replay video of the agent
 - It pushes everything to the hub
 :param repo_id: id of the model repository from the Hugging Face Hub
 :param model: trained model
 :param eval_env: environment used to evaluate the agent
 :param fps: number of fps for rendering the video
 :param commit_message: commit message
 :param logs: directory on local machine of tensorboard logs you'd like to upload
 """
    msg.info(
        "This function will save, evaluate, generate a video of your agent, "
        "create a model card and push everything to the hub. "
        "It might take up to 1min. \n "
        "This is a work in progress: if you encounter a bug, please open an issue."
    )
    # Step 1: Clone or create the repo
    repo_url = HfApi().create_repo(
        repo_id=repo_id,
        token=token,
        private=False,
        exist_ok=True,
    )

    with tempfile.TemporaryDirectory() as tmpdirname:
        tmpdirname = Path(tmpdirname)

        # Step 2: Save the model
        torch.save(model.state_dict(), tmpdirname / "model.pt")

        # Step 3: Evaluate the model and build JSON
        mean_reward, std_reward = _evaluate_agent(eval_env, 10, model)

        # First get datetime
        eval_datetime = datetime.datetime.now()
        eval_form_datetime = eval_datetime.isoformat()

        evaluate_data = {
            "env_id": hyperparameters.env_id,
            "mean_reward": mean_reward,
            "std_reward": std_reward,
            "n_evaluation_episodes": 10,
            "eval_datetime": eval_form_datetime,
        }

        # Write a JSON file
        with open(tmpdirname / "results.json", "w") as outfile:
            json.dump(evaluate_data, outfile)

        # Step 4: Generate a video
        video_path = tmpdirname / "replay.mp4"
        record_video(eval_env, model, video_path, video_fps)

        # Step 5: Generate the model card
        generated_model_card, metadata = _generate_model_card(
            "PPO", hyperparameters.env_id, mean_reward, std_reward, hyperparameters
        )
        _save_model_card(tmpdirname, generated_model_card, metadata)

        # Step 6: Add logs if needed
        if logs:
            _add_logdir(tmpdirname, Path(logs))

        msg.info(f"Pushing repo {repo_id} to the Hugging Face Hub")

        repo_url = upload_folder(
            repo_id=repo_id,
            folder_path=tmpdirname,
            path_in_repo="",
            commit_message=commit_message,
            token=token,
        )

        msg.info(f"Your model is pushed to the Hub. You can view your model here: {repo_url}")
    return repo_url


def _evaluate_agent(env, n_eval_episodes, policy):
    """
 Evaluate the agent for ``n_eval_episodes`` episodes and returns average reward and std of reward.
 :param env: The evaluation environment
 :param n_eval_episodes: Number of episode to evaluate the agent
 :param policy: The agent
 """
    episode_rewards = []
    for episode in range(n_eval_episodes):
        state = env.reset()
        step = 0
        done = False
        total_rewards_ep = 0

        while done is False:
            state = torch.Tensor(state).to(device)
            action, _, _, _ = policy.get_action_and_value(state)
            new_state, reward, done, info = env.step(action.cpu().numpy())
            total_rewards_ep += reward
            if done:
                break
            state = new_state
        episode_rewards.append(total_rewards_ep)
    mean_reward = np.mean(episode_rewards)
    std_reward = np.std(episode_rewards)

    return mean_reward, std_reward


def record_video(env, policy, out_directory, fps=30):
    images = []
    done = False
    state = env.reset()
    img = env.render(mode="rgb_array")
    images.append(img)
    while not done:
        state = torch.Tensor(state).to(device)
        # Take the action (index) that have the maximum expected future reward given that state
        action, _, _, _ = policy.get_action_and_value(state)
        state, reward, done, info = env.step(
            action.cpu().numpy()
        )  # We directly put next_state = state for recording logic
        img = env.render(mode="rgb_array")
        images.append(img)
    imageio.mimsave(out_directory, [np.array(img) for i, img in enumerate(images)], fps=fps)


def _generate_model_card(model_name, env_id, mean_reward, std_reward, hyperparameters):
    """
 Generate the model card for the Hub
 :param model_name: name of the model
 :env_id: name of the environment
 :mean_reward: mean reward of the agent
 :std_reward: standard deviation of the mean reward of the agent
 :hyperparameters: training arguments
 """
    # Step 1: Select the tags
    metadata = generate_metadata(model_name, env_id, mean_reward, std_reward)

    # Transform the hyperparams namespace to string
    converted_dict = vars(hyperparameters)
    converted_str = str(converted_dict)
    converted_str = converted_str.split(", ")
    converted_str = "\n".join(converted_str)

    # Step 2: Generate the model card
    model_card = f"""
 # PPO Agent Playing {env_id}

 This is a trained model of a PPO agent playing {env_id}.

 # Hyperparameters
 """
    return model_card, metadata


def generate_metadata(model_name, env_id, mean_reward, std_reward):
    """
 Define the tags for the model card
 :param model_name: name of the model
 :param env_id: name of the environment
 :mean_reward: mean reward of the agent
 :std_reward: standard deviation of the mean reward of the agent
 """
    metadata = {}
    metadata["tags"] = [
        env_id,
        "ppo",
        "deep-reinforcement-learning",
        "reinforcement-learning",
        "custom-implementation",
        "deep-rl-course",
    ]

    # Add metrics
    eval = metadata_eval_result(
        model_pretty_name=model_name,
        task_pretty_name="reinforcement-learning",
        task_id="reinforcement-learning",
        metrics_pretty_name="mean_reward",
        metrics_id="mean_reward",
        metrics_value=f"{mean_reward:.2f} +/- {std_reward:.2f}",
        dataset_pretty_name=env_id,
        dataset_id=env_id,
    )

    # Merges both dictionaries
    metadata = {**metadata, **eval}

    return metadata


def _save_model_card(local_path, generated_model_card, metadata):
    """Saves a model card for the repository.
 :param local_path: repository directory
 :param generated_model_card: model card generated by _generate_model_card()
 :param metadata: metadata
 """
    readme_path = local_path / "README.md"
    readme = ""
    if readme_path.exists():
        with readme_path.open("r", encoding="utf8") as f:
            readme = f.read()
    else:
        readme = generated_model_card

    with readme_path.open("w", encoding="utf-8") as f:
        f.write(readme)

    # Save our metrics to Readme metadata
    metadata_save(readme_path, metadata)


def _add_logdir(local_path: Path, logdir: Path):
    """Adds a logdir to the repository.
 :param local_path: repository directory
 :param logdir: logdir directory
 """
    if logdir.exists() and logdir.is_dir():
        # Add the logdir to the repository under new dir called logs
        repo_logdir = local_path / "logs"

        # Delete current logs if they exist
        if repo_logdir.exists():
            shutil.rmtree(repo_logdir)

        # Copy logdir into repo logdir
        shutil.copytree(logdir, repo_logdir)


def make_env(env_id, seed, idx, capture_video, run_name):
    def thunk():
        env = gym.make(env_id)
        env = gym.wrappers.RecordEpisodeStatistics(env)
        if capture_video:
            if idx == 0:
                env = gym.wrappers.RecordVideo(env, f"videos/{run_name}")
        env.seed(seed)
        env.action_space.seed(seed)
        env.observation_space.seed(seed)
        return env

    return thunk


def layer_init(layer, std=np.sqrt(2), bias_const=0.0):
    torch.nn.init.orthogonal_(layer.weight, std)
    torch.nn.init.constant_(layer.bias, bias_const)
    return layer


class Agent(nn.Module):
    def __init__(self, envs):
        super().__init__()
        self.critic = nn.Sequential(
            layer_init(nn.Linear(np.array(envs.single_observation_space.shape).prod(), 64)),
            nn.Tanh(),
            layer_init(nn.Linear(64, 64)),
            nn.Tanh(),
            layer_init(nn.Linear(64, 1), std=1.0),
        )
        self.actor = nn.Sequential(
            layer_init(nn.Linear(np.array(envs.single_observation_space.shape).prod(), 64)),
            nn.Tanh(),
            layer_init(nn.Linear(64, 64)),
            nn.Tanh(),
            layer_init(nn.Linear(64, envs.single_action_space.n), std=0.01),
        )

    def get_value(self, x):
        return self.critic(x)

    def get_action_and_value(self, x, action=None):
        logits = self.actor(x)
        probs = Categorical(logits=logits)
        if action is None:
            action = probs.sample()
        return action, probs.log_prob(action), probs.entropy(), self.critic(x)


if __name__ == "__main__":
    args = parse_args()
    run_name = f"{args.env_id}__{args.exp_name}__{args.seed}__{int(time.time())}"
    if args.track:
        import wandb

        wandb.init(
            project=args.wandb_project_name,
            entity=args.wandb_entity,
            sync_tensorboard=True,
            config=vars(args),
            name=run_name,
            monitor_gym=True,
            save_code=True,
        )
    writer = SummaryWriter(f"runs/{run_name}")
    writer.add_text(
        "hyperparameters",
        "|param|value|\n|-|-|\n%s" % ("\n".join([f"|{key}|{value}|" for key, value in vars(args).items()])),
    )

    # TRY NOT TO MODIFY: seeding
    random.seed(args.seed)
    np.random.seed(args.seed)
    torch.manual_seed(args.seed)
    torch.backends.cudnn.deterministic = args.torch_deterministic

    device = torch.device("cuda" if torch.cuda.is_available() and args.cuda else "cpu")

    # env setup
    envs = gym.vector.SyncVectorEnv(
        [make_env(args.env_id, args.seed + i, i, args.capture_video, run_name) for i in range(args.num_envs)]
    )
    assert isinstance(envs.single_action_space, gym.spaces.Discrete), "only discrete action space is supported"

    agent = Agent(envs).to(device)
    optimizer = optim.Adam(agent.parameters(), lr=args.learning_rate, eps=1e-5)

    # ALGO Logic: Storage setup
    obs = torch.zeros((args.num_steps, args.num_envs) + envs.single_observation_space.shape).to(device)
    actions = torch.zeros((args.num_steps, args.num_envs) + envs.single_action_space.shape).to(device)
    logprobs = torch.zeros((args.num_steps, args.num_envs)).to(device)
    rewards = torch.zeros((args.num_steps, args.num_envs)).to(device)
    dones = torch.zeros((args.num_steps, args.num_envs)).to(device)
    values = torch.zeros((args.num_steps, args.num_envs)).to(device)

    # TRY NOT TO MODIFY: start the game
    global_step = 0
    start_time = time.time()
    next_obs = torch.Tensor(envs.reset()).to(device)
    next_done = torch.zeros(args.num_envs).to(device)
    num_updates = args.total_timesteps // args.batch_size

    for update in range(1, num_updates + 1):
        # Annealing the rate if instructed to do so.
        if args.anneal_lr:
            frac = 1.0 - (update - 1.0) / num_updates
            lrnow = frac * args.learning_rate
            optimizer.param_groups[0]["lr"] = lrnow

        for step in range(0, args.num_steps):
            global_step += 1 * args.num_envs
            obs[step] = next_obs
            dones[step] = next_done

            # ALGO LOGIC: action logic
            with torch.no_grad():
                action, logprob, _, value = agent.get_action_and_value(next_obs)
                values[step] = value.flatten()
            actions[step] = action
            logprobs[step] = logprob

            # TRY NOT TO MODIFY: execute the game and log data.
            next_obs, reward, done, info = envs.step(action.cpu().numpy())
            rewards[step] = torch.tensor(reward).to(device).view(-1)
            next_obs, next_done = torch.Tensor(next_obs).to(device), torch.Tensor(done).to(device)

            for item in info:
                if "episode" in item.keys():
                    print(f"global_step={global_step}, episodic_return={item['episode']['r']}")
                    writer.add_scalar("charts/episodic_return", item["episode"]["r"], global_step)
                    writer.add_scalar("charts/episodic_length", item["episode"]["l"], global_step)
                    break

        # bootstrap value if not done
        with torch.no_grad():
            next_value = agent.get_value(next_obs).reshape(1, -1)
            if args.gae:
                advantages = torch.zeros_like(rewards).to(device)
                lastgaelam = 0
                for t in reversed(range(args.num_steps)):
                    if t == args.num_steps - 1:
                        nextnonterminal = 1.0 - next_done
                        nextvalues = next_value
                    else:
                        nextnonterminal = 1.0 - dones[t + 1]
                        nextvalues = values[t + 1]
                    delta = rewards[t] + args.gamma * nextvalues * nextnonterminal - values[t]
                    advantages[t] = lastgaelam = delta + args.gamma * args.gae_lambda * nextnonterminal * lastgaelam
                returns = advantages + values
            else:
                returns = torch.zeros_like(rewards).to(device)
                for t in reversed(range(args.num_steps)):
                    if t == args.num_steps - 1:
                        nextnonterminal = 1.0 - next_done
                        next_return = next_value
                    else:
                        nextnonterminal = 1.0 - dones[t + 1]
                        next_return = returns[t + 1]
                    returns[t] = rewards[t] + args.gamma * nextnonterminal * next_return
                advantages = returns - values

        # flatten the batch
        b_obs = obs.reshape((-1,) + envs.single_observation_space.shape)
        b_logprobs = logprobs.reshape(-1)
        b_actions = actions.reshape((-1,) + envs.single_action_space.shape)
        b_advantages = advantages.reshape(-1)
        b_returns = returns.reshape(-1)
        b_values = values.reshape(-1)

        # Optimizing the policy and value network
        b_inds = np.arange(args.batch_size)
        clipfracs = []
        for epoch in range(args.update_epochs):
            np.random.shuffle(b_inds)
            for start in range(0, args.batch_size, args.minibatch_size):
                end = start + args.minibatch_size
                mb_inds = b_inds[start:end]

                _, newlogprob, entropy, newvalue = agent.get_action_and_value(
                    b_obs[mb_inds], b_actions.long()[mb_inds]
                )
                logratio = newlogprob - b_logprobs[mb_inds]
                ratio = logratio.exp()

                with torch.no_grad():
                    # calculate approx_kl http://joschu.net/blog/kl-approx.html
                    old_approx_kl = (-logratio).mean()
                    approx_kl = ((ratio - 1) - logratio).mean()
                    clipfracs += [((ratio - 1.0).abs() > args.clip_coef).float().mean().item()]

                mb_advantages = b_advantages[mb_inds]
                if args.norm_adv:
                    mb_advantages = (mb_advantages - mb_advantages.mean()) / (mb_advantages.std() + 1e-8)

                # Policy loss
                pg_loss1 = -mb_advantages * ratio
                pg_loss2 = -mb_advantages * torch.clamp(ratio, 1 - args.clip_coef, 1 + args.clip_coef)
                pg_loss = torch.max(pg_loss1, pg_loss2).mean()

                # Value loss
                newvalue = newvalue.view(-1)
                if args.clip_vloss:
                    v_loss_unclipped = (newvalue - b_returns[mb_inds]) ** 2
                    v_clipped = b_values[mb_inds] + torch.clamp(
                        newvalue - b_values[mb_inds],
                        -args.clip_coef,
                        args.clip_coef,
                    )
                    v_loss_clipped = (v_clipped - b_returns[mb_inds]) ** 2
                    v_loss_max = torch.max(v_loss_unclipped, v_loss_clipped)
                    v_loss = 0.5 * v_loss_max.mean()
                else:
                    v_loss = 0.5 * ((newvalue - b_returns[mb_inds]) ** 2).mean()

                entropy_loss = entropy.mean()
                loss = pg_loss - args.ent_coef * entropy_loss + v_loss * args.vf_coef

                optimizer.zero_grad()
                loss.backward()
                nn.utils.clip_grad_norm_(agent.parameters(), args.max_grad_norm)
                optimizer.step()

            if args.target_kl is not None:
                if approx_kl > args.target_kl:
                    break

        y_pred, y_true = b_values.cpu().numpy(), b_returns.cpu().numpy()
        var_y = np.var(y_true)
        explained_var = np.nan if var_y == 0 else 1 - np.var(y_true - y_pred) / var_y

        # TRY NOT TO MODIFY: record rewards for plotting purposes
        writer.add_scalar("charts/learning_rate", optimizer.param_groups[0]["lr"], global_step)
        writer.add_scalar("losses/value_loss", v_loss.item(), global_step)
        writer.add_scalar("losses/policy_loss", pg_loss.item(), global_step)
        writer.add_scalar("losses/entropy", entropy_loss.item(), global_step)
        writer.add_scalar("losses/old_approx_kl", old_approx_kl.item(), global_step)
        writer.add_scalar("losses/approx_kl", approx_kl.item(), global_step)
        writer.add_scalar("losses/clipfrac", np.mean(clipfracs), global_step)
        writer.add_scalar("losses/explained_variance", explained_var, global_step)
        print("SPS:", int(global_step / (time.time() - start_time)))
        writer.add_scalar("charts/SPS", int(global_step / (time.time() - start_time)), global_step)

    envs.close()
    writer.close()

    # Create the evaluation environment
    eval_env = gym.make(args.env_id)

    package_to_hub(
        repo_id=args.repo_id,
        model=agent,  # The model we want to save
        hyperparameters=args,
        eval_env=gym.make(args.env_id),
        logs=f"runs/{run_name}",
    )

To be able to share your model with the community there are three more steps to follow:

`_valutate_agent()：评估代理。_GENERATE_MODEL_CARD()：生成您的代理的模型卡。_Record_Video()`：录制您的代理的视频。最后，我们在PPO培训结束时调用此函数。以下是ppo.py最终文件的样子为了能够与社区分享您的模型，还需要执行三个步骤：

1️⃣ (If it’s not already done) create an account to HF ➡ https://huggingface.co/join

1到HF https://huggingface.co/join的️➡⃣(如果尚未完成)创建帐户

2️⃣ Sign in and then, you need to store your authentication token from the Hugging Face website.

2️⃣登录，然后，您需要存储来自Hugging Face网站的身份验证令牌。

• Create a new token (https://huggingface.co/settings/tokens) with write role

创建新令牌(具有写角色的https://huggingface.co/settings/tokens)创建HF令牌

• Copy the token
• Run the cell below and paste the token

from huggingface_hub import notebook_login
notebook_login()
!git config --global credential.helper store

If you don’t want to use a Google Colab or a Jupyter Notebook, you need to use this command instead: huggingface-cli login

复制令牌运行下面的单元格并粘贴令牌如果您不想使用Google Colab或Jupyter Notebook，则需要使用以下命令：huggingfacecli login

Let’s start the training 🔥

让我们开始培训🔥

• Now that you’ve coded from scratch PPO and added the Hugging Face Integration, we’re ready to start the training 🔥

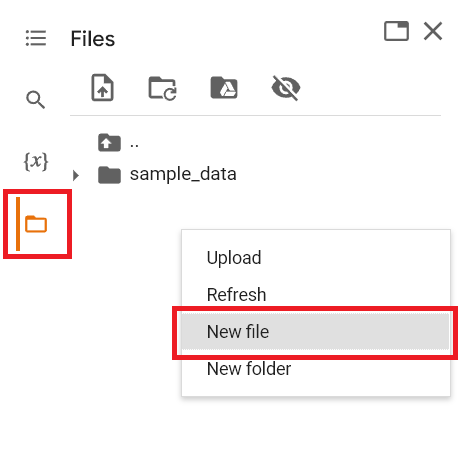

• First, you need to copy all your code to a file you create called ppo.py

现在您已经从头开始编写PPO并添加了Hugging Face集成，我们准备好首先开始培训🔥，您需要将所有代码复制到您创建的名为ppo.pyPPO PPO的文件中

• Now we just need to run this python script using python <name-of-python-script>.py with the additional parameters we defined with argparse
• You should modify more hyperparameters otherwise the training will not be super stable.

!python ppo.py --env-id="LunarLander-v2" --repo-id="YOUR_REPO_ID" --total-timesteps=50000

Some additional challenges 🏆

现在，我们只需要使用带有我们用argparse定义的附加参数的python.py来运行此python脚本。您应该修改更多的超参数，否则培训将不会非常稳定。一些附加挑战🏆

The best way to learn is to try things by your own! Why not trying another environment?

学习的最好方法就是自己去尝试！为什么不尝试另一个环境呢？

See you on Unit 8, part 2 where we going to train agents to play Doom 🔥

第8单元，第2部分，我们将培训特工扮演末日🔥

Keep learning, stay awesome 🤗

继续学习，保持超赞🤗
